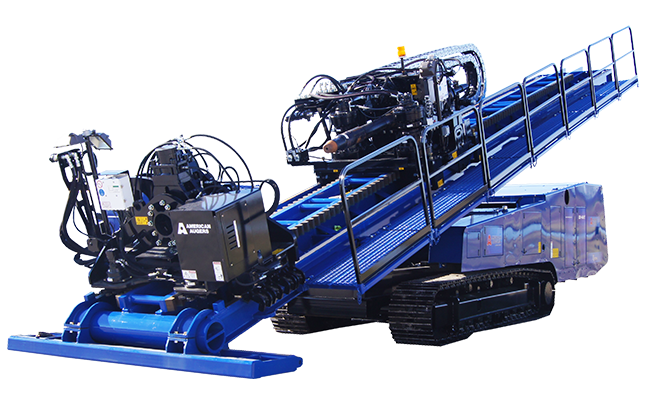

DD-440T

The only track-mounted drill that offers the highest range of thrust/pullback power

60,000 ft. lbs. (81,350 Nm) maximum rotary torque

Wireline commutator for speedy hookup of the wireline guidance equipment

PRODUCTO VENDIDO POR TECMECO EN

Colombia

Venezuela

CONOCE ESTE EQUIPO A PROFUNDIDAD

CARACTERISTICAS PRINCIPALES

  • Cummins Tier 4 final or Tier 2 (depending on country of purchase), 600 HP (447 kW) Diesel Engine

  • 440,000 lbs. (200 Tonnes) of Maximum Thrust/Pullback Power

  • Rack and Pinion (2) Pinion Drive with Adjustable Force Limiter

  • 3 in. (76 mm) Fluid Course

  • Accommodates Range II Drill Pipe

  • 10°- 18° Variable Drilling Angle

  • Wiggle Steer®

  • Quiet-Pak® Noise Reduction System

Wiggle Steer® System

  • The Wiggle Steer® System provides the operator of a directional drill the means to rotate the drill pipe and subsequently the cutting head on the drill string back and forth over a predetermined range. This back and forth motion would cause the hole made by the cutting head to be more open in a particular direction and therefore facilitate steering of the drilling pipe in that direction under ground. The Wiggle Steer System will rotate the Drill Pipe in the Makeup (CW) direction while thrusting forward. It will then rotate the Drill Pipe in the Breakout (CCW) direction but will not thrust in the breakout direction. This method reduces the breakout torque and should prevent the drill string tool joints from parting down-hole.
